技术指标 Electrical specifications | |
频率范围 Frequency Range(MHz) | 2G/3G/4G/3300-3800 |
极化方式 Polarization | 垂直+水平 (±45°) |
增益 Gain(dBi) | 8-10 |
前后比 Front To Back Ratio (dB) | 27 |
半功率角 Half-power Beam Width(°) | H: 76° E: 66° |
阻抗 Impedance(Ω) | Ω50 |
驻波比 V.S.W.R | ≤2 |
功率容量 Max. Input Power (W) | 100 |
雷电保护 Lightning Protection | 直接接地 |
机械指标 Mechanical specifications | |
接头 Connector | N座*2 或SMA*2 |
长度*最大直径 Dimension (H*W*D)/Max. Diameter (mm) | 330*180-80 |
天线重量 Weight(Kg) | 1 |
抗风能力 Rated Wind Velocity(m/s) | 60m/s |
工作温度 Operating Temperature(℃) | -40 ~ +60 |
工作湿度 Humidity | 95% |
安装方式 Installation | 抱杆安装/地面安装 |
天线罩材料 Radome Material | ABS |

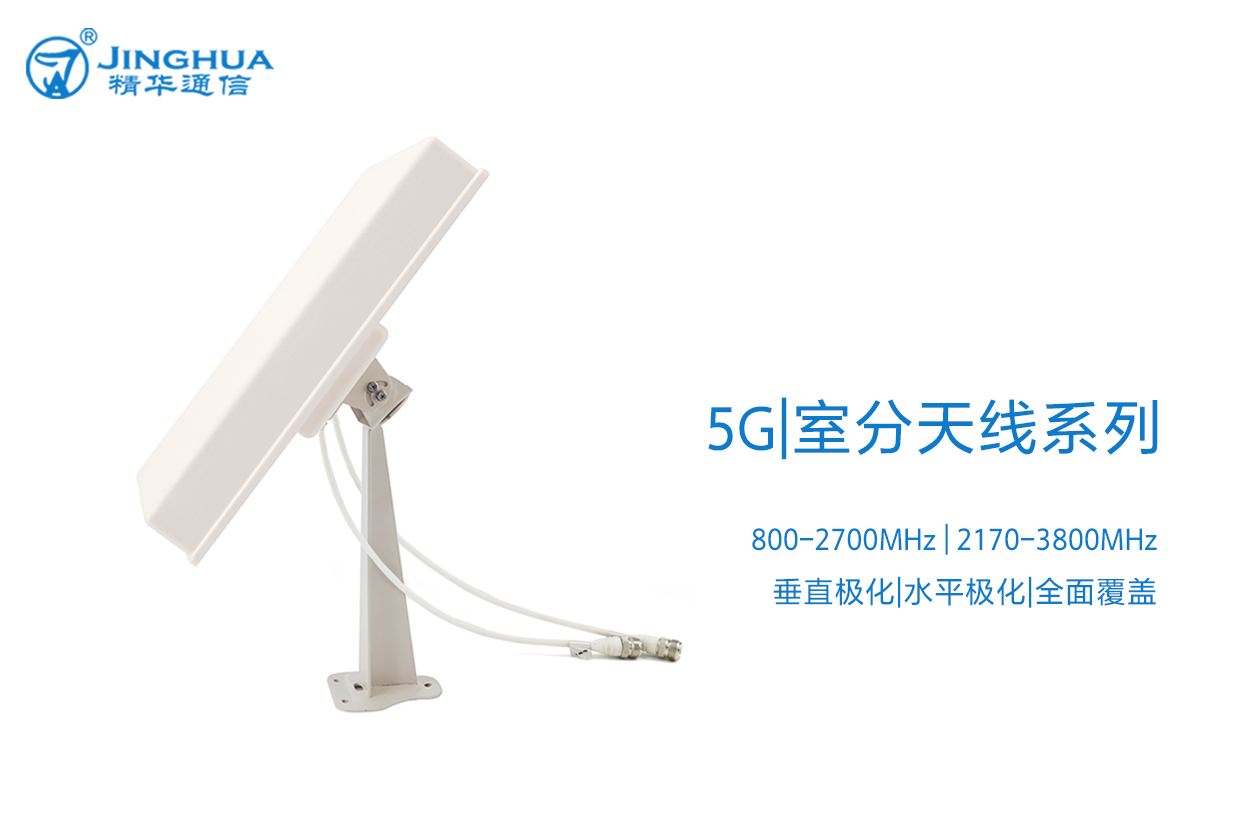

精华全新研发5G系列天线,全网通用的双极化定向天线。自带双输入/输入插头,频率覆盖范围极广,能够完美配合现有4G以及未来5G室内信号覆盖的应用。我们的产品具有高增益,高效率,质量轻,防水防晒等特点,适合户外或者室内使用。
精华全新研发5G系列天线,自带双输入/输入插头,频率覆盖范围极广,能够完美配合现有800-2700MHz的4G覆盖系统以及未来5G室内信号覆盖的应用。我们的产品 具有高增益,高效率,质量轻,防水防晒等特点,适合户外或者室内使用。我司的壁挂天线和吸顶天线产品被广泛应用在各城市的地下室、车库、高层楼宇及商场等室内覆盖网络当中,为目前全球5G网络的迅猛发展提供有力的硬件支撑。
With two ports for both signal input and output, our 5G Series antennas are multitask, lightweight, and they provide high gains and constant performance across a broad frequency range from 800MHz to 4200MHz, with your choice of pole/wall installation. The antenna is suitable for outdoor or indoor use.
Broad Response --- With 1500/2000MHz bandwidth, this antenna provides ideal performance in single or multi-frequency system.
High Gain --- 6-8dBi gain provides optimized pattern coverage for either indoor or outdoor applications.
Dual band MIMO --- With dual ports working together, users could enjoy fast network from newest 5G technology while the 3G/4G signals unaffected.
Weather Resistant --- DC ground for lightning protection and IP67 waterproof level for our products to work under extreme weather conditions.
Also In Package ---Product test report and installation manual will be provided to each set of Jinghua antenna.
Customization --- These antennas can be customized for different frequencies and gains.
